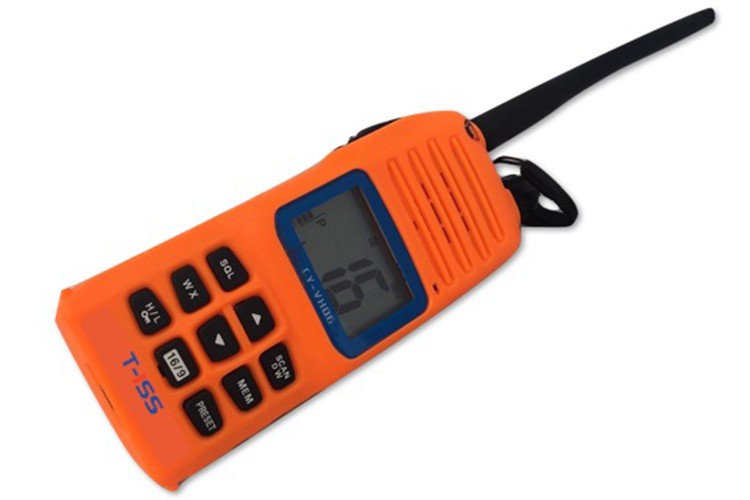

ATEX Transceiver

The ATEX Transceiver VHF radio is a state of the art communication system. It complies with the latest SOLAS and IMO regulations, it’s approved according to regulations with T4 grade IECEx.

The sturdy ATEX Transceiver is intrinsically safe and explosion proof, – specially designed to meet the high standards of fire-fighting teams on board of your vessel. Also available with PTT Headset.

Frequency Range: 154 – 163 mHz

Channel spacing: 25 kHz

Number of channels: 16

Operation Temp: -20°C – +40°C

Case size: 58 x 133 x 275 mm (WxHxD)

Transmitter:

RF output power: 1W (lo)/3,2W (hi)

Frequency error: < + 0,5 kHz

Receiver:

Sensitivity: 0,18 uV for 12 dB SINAD

Adj. channel power: > 70 dB

Blocking: > 90 dB

Spurious response: > 60 dB

Features:

● Heavy duty housing

● IP67 Waterproof

● Floating construction

● Large display

● Large buttons

● ATEC Class II 2G Ex ib IIB T4

● Bright orange colour

● Exchangeable batterypack

● Belt clip

● Wrist strap

Benefits:

● Waterproof and sturdy for on-board use

● Backlit easy-to-read display, even in the dark

● Big buttons that are easy to control

● Bright orange so it’s always easy to recognize
