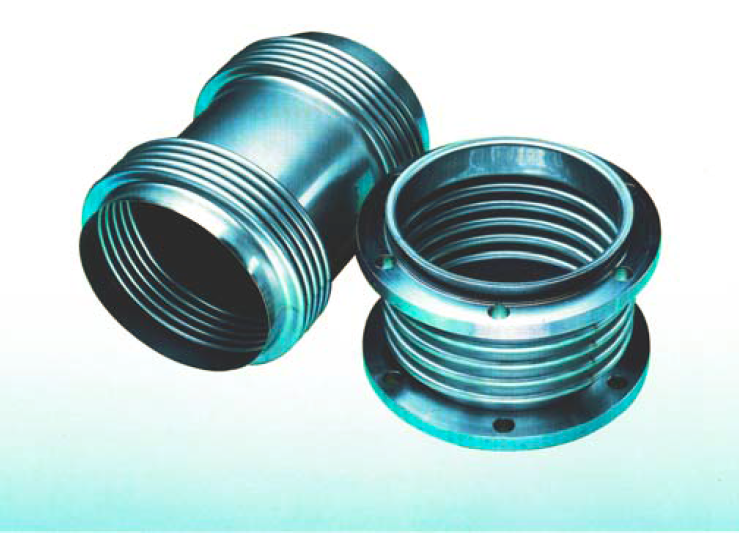

Expansion joint Vibratec VTAD 50

PLEASE NOTE: You can not purchase by the website, please send an inquiry to shop@nemosupply.com for a quote

Bellow:

AISI 321 (1.4541) steel (2 layer).

Flanges:

RSt.37.2. DN40 – DN175: acc. to DIN 2573 (PN6)

Other standards or material at request.

Temperature > 600ºC

Design pressure > 1,0 BarG

Produced acc. to EJMA-standard

Turnable flanges or stub ends

Other specifications at request

Dimensional specification:

Ln (mm): 275

D (mm): 140

B (mm): 16

K (mm): 110

N (ant.): 4

D2 (mm): 14

Do (mm): 70

Weight (kg): 4
