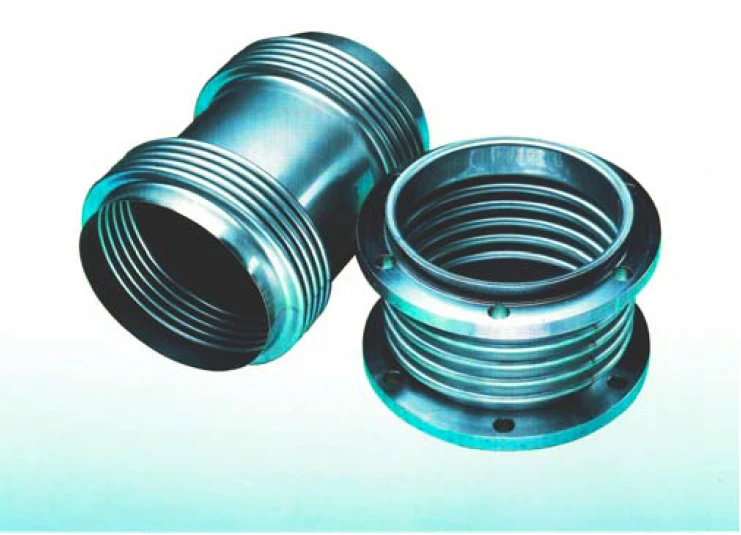

Expansion joint Vibratec VTAS 250

PLEASE NOTE: You can not purchase by the website, please send an inquiry to shop@nemosupply.com for a quote

Bellow:

AISI 321 (1.4541) steel (2 layer).

Flanges:

DN200 – DN1200: acc. to DIN 86044

Other standards or material at request.

Temperature > 600ºC

Design pressure > 1,0 BarG

Produced acc. to EJMA-standard

Turnable flanges or stub ends

Other specifications at request

Dimensional specification:

Ln (mm): 165

D (mm): 375

B (mm): 16

K (mm): 335

N (ant.): 12

D2 (mm): 18

Do (mm): 296

Weight (kg): 15
