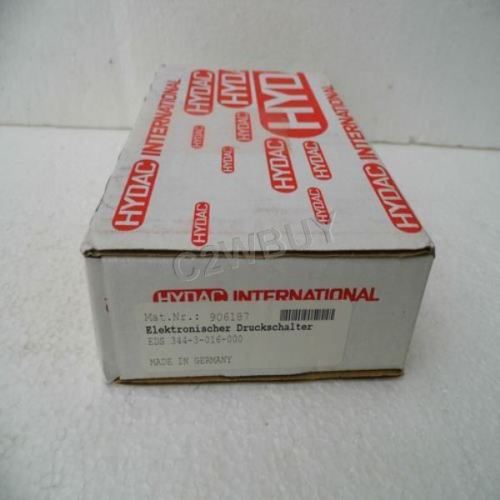

Hydac EDS 344-3-016-000

The EDS 300 is a compact electronic pressure switch with integrated digital display. 4 different output versions are available: with one switching point, with two switching points and the same two variants, also with an additional analogue output signal 4 ... 20 mA.

Technical specifications:

Characteristic Value / Characteristic / Information
Additional interface 4..20mA
Approval no
Display Yes
Electrical connection Binder Serie 714 M18 /4p
Mechanical connection G1/4 A DIN 3852 /male
Number of switching points 1
Pressure range 0,0
Pressure range 16,0
Pressure unit BAR
Product responsible HE Electronics
Type of pressure Relative
