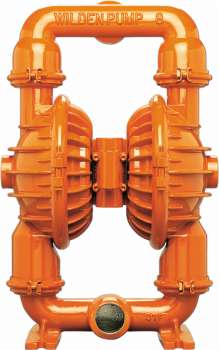

WILDEN Double Diaphragm Pump 2"

Type - TZ8/AAAAA/BNS/BN/ABN/0014
Version - Clamp Band
Ex-Proof - No
Wetted housing parts - Aluminium
Piston outer - Aluminium
Air Chamber - Aluminium
Center Block - Aluminium
Air Valve - Aluminium
Diaphragms - Buna N
Ball Valves - Buna N
Valve Seat -Buna N
Suction manifold 2" BSPT (IG)
Discharge manifold 2" BSPT (IG)
Air inlet 3/4" NPT (IG)
Weight:ca. 33 kg
